10 QTY 1800PF 1.8nF 0.0018uF 1n8 K 400V Polyster Film Capacitor 2222-370-90217

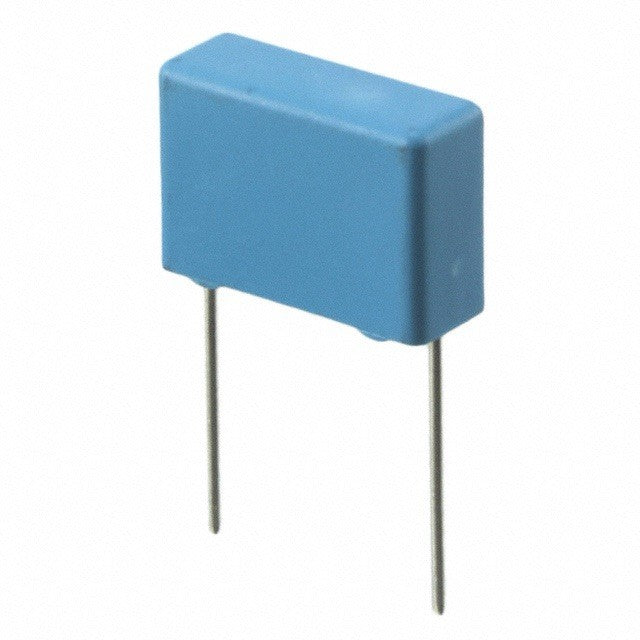

Vishay BC Components 2222-370-90217 | 1800pF 400V MKT Metallized Polyester Film Capacitor

Product Specifications: 2222 370 90217 Capacitor

• Manufacturer: Vishay BC Components (formerly Philips)

• Series: MKT 370 (General Purpose)

• Component Type: Metallized Polyester Film Capacitor

• Capacitance: 1800 pF (1.8 nF / 0.0018 µF)

• Rated Voltage (DC): 400V DC

• Rated Voltage (AC): 220V AC

• Tolerance: ±10% (K)

• Dielectric: Metallized Polyester Film (PET)

• Lead Spacing (Pitch): 5.08 mm (0.2 in)

• Mounting Type: Through-Hole (Radial)

• Dimensions (approx): 2.5 mm Width x 6.5 mm Height x 7.2 mm Length

• Termination: Tinned Wire (PC Pin)

• Climatic Category: 55/105/56 (IEC 60068-1)

• Operating Temperature Range: $-55°C$ to $+105°C$

Key Features & Applications

• AEC-Q200 Qualified: High reliability and stability, meeting automotive grade standards for durability.

• Standard 5.08mm Pitch: Fits the most common industrial and consumer PCB footprints for film capacitors.

• Pulse Handling: Rated for high voltage pulse slope ($dU/dt$) of 630 V/µs, suitable for rapid switching environments.

• Flame Retardant: Encapsulated in a plastic case and epoxy resin compliant with UL 94 V-0.

• Common Applications:

  • Blocking and coupling.

  • Bypass and energy reservoir.

  • Telecom, industrial, and consumer electronics.

  • Automotive cabin electronics.
