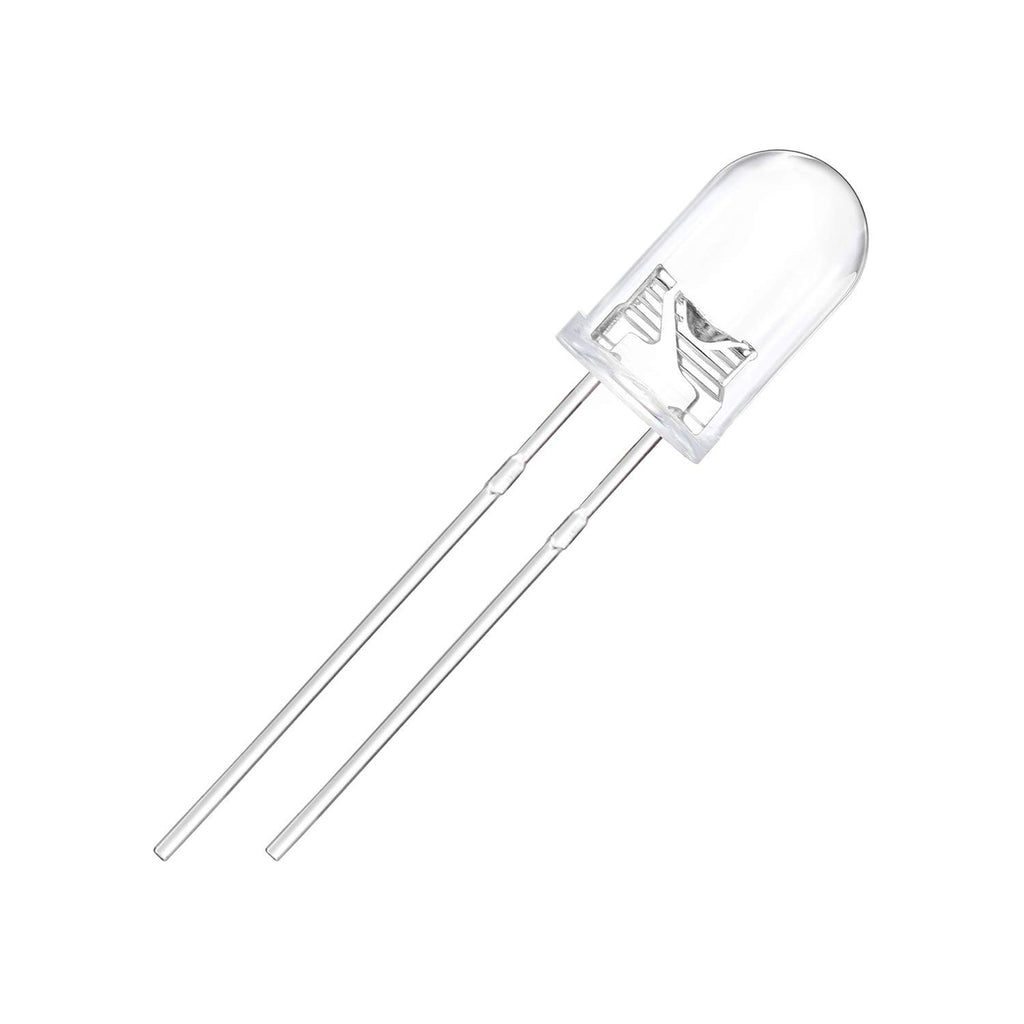

10 QTY Agilent/Avago HLMP-EL10-X1LDD T-1 3/4 (5mm)

Shipping calculated at checkout.

Product Specifications

• Manufacturer: Agilent / Avago (Broadcom)

• Part Number: HLMP-EL10-X1LDD

• LED Size: T-1 3/4 (5mm)

• Lens Appearance: Water Clear (Untinted, Non-Diffused)

• Emitted Color: Amber / Orange (590nm)

• Material: AlInGaP (High Efficiency)

• Luminous Intensity: 14,100 mcd (Typical) / 21,000 mcd (Max)

• Viewing Angle: 8° (Ultra-Narrow, High-Focus Beam)

• Forward Voltage (V_f): 2.02V (Typical)

• Forward Current (I_f): 20 mA

• Peak Wavelength: 592 nm

• Operating Temperature: -40°C to +100°C

• Mounting Type: Through-Hole (Radial Leads)

• Package Features: Precision Optical Performance with second-generation optics

Key Features

• Exceptional Clarity: The water-clear lens ensures maximum light transmission and a professional, "off-state" appearance.

• Sunlight Readable: Designed with high luminous efficiency for excellent visibility even in bright outdoor conditions.

• Narrow Beam Profile: The 8-degree viewing angle provides a sharp, concentrated point of light, ideal for indicators and signage.

• Industrial Reliability: Built to handle high-temperature environments (up to 100°C), making it suitable for automotive and industrial panels.
