Description
Product Specifications
Manufacturer: United Chemi-Con (UCC) / Nippon Chemi-Con
Series: MV (Standard Surface Mount Series)
Capacitance: 22 µF
Voltage Rating: 16V DC
Tolerance: ±20% (M)
Case Code: E55
Dimensions: 5.0 mm Diameter x 5.2 mm Height

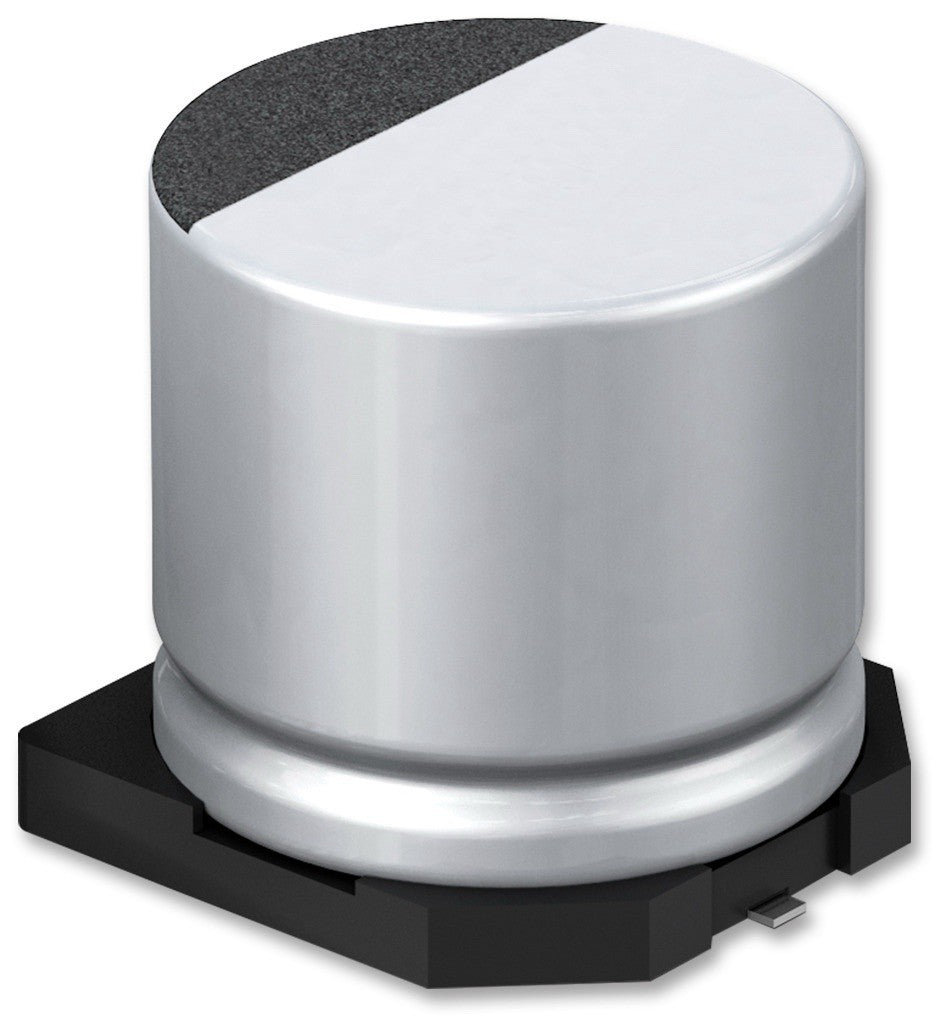

Mounting Type: SMD (Surface Mount Device) / V-Chip
Operating Temperature Range: -40°C to +85°C
Endurance: 2,000 Hours @ 85°C
Leakage Current: 3.52 µA (Max after 2 minutes)
Dissipation Factor: 0.20 (Max @ 120Hz)
Compliance: RoHS Compliant
Key Features & Applications
Low Profile Design: The 5.2mm height is optimized for high-density, low-clearance PCB layouts.
Vertical Chip (V-Chip): Designed for automated pick-and-place assembly with robust solder reflow compatibility.
General Purpose Reliability: Ideal for decoupling, filtering, and bypassing in consumer electronics and industrial equipment.
-
Common Applications:
Audio/Video signal coupling and decoupling.
DC-DC converter output filtering.
Portable electronic devices and handheld instrumentation.
Automotive cabin electronics (non-critical).
