Orginal CWN590-34-9004 Connector New Qty 10

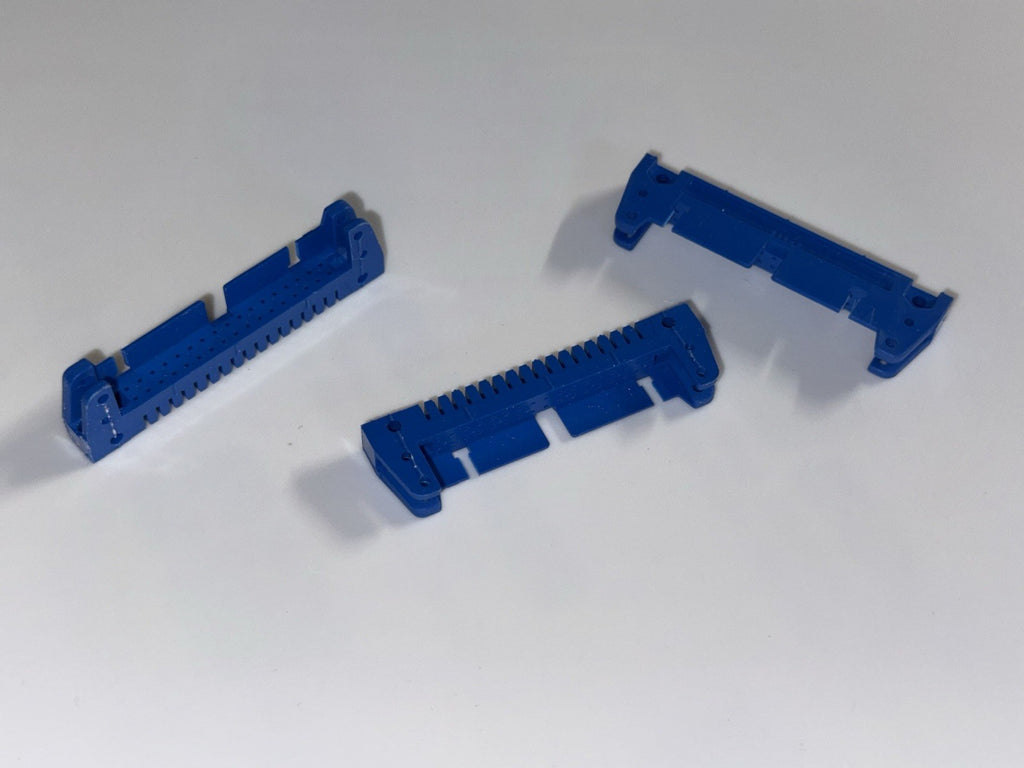

CW Industries CWN-590-34-9004 | 34-Pin Male Shrouded Header | R/A PCB Mount

Product Specifications: CWN-590-34-9004 Header

• Manufacturer: CW Industries

• Series: CWN (Commercial Header Series)






• Component Type: Shrouded Pin Header (Male)

• Number of Positions: 34 Positions (2 Rows of 17)






• Pitch (Mating): 0.100" (2.54 mm) — Standard spacing for ribbon cable sockets.

• Mounting Type: Through-Hole, Right-Angle (R/A)

• Shrouding: 4-Wall Full Shroud (Protects pins and ensures correct alignment)






• Latch Type: No Latch (Low-profile version)






• Contact Material: Phosphor Bronze

• Contact Plating: Gold over Nickel (Mating area)

• Housing Material: Blue Thermoplastic (UL 94V-0 Rated)






• Current Rating: 1.0 Amp per contact

• Insulation Resistance: $>5\times 10^9\Omega$

• Operating Temperature Range: $-55°C$ to $+125°C$






Key Features & Applications

• Fully Shrouded Protection: The four-wall shroud prevents damage to the delicate male pins during handling and assembly.

• Polarization Slot: Includes a center keyway slot to ensure that the mating female ribbon cable socket can only be plugged in the correct orientation.

• Right-Angle Orientation: Perfect for "side-entry" cable connections, which helps maintain a low profile in rack-mount or slim-chassis designs.

• Industry Standard Mating: Designed to mate with any standard 34-position female IDC socket (like the CWR-210 series).

• Common Applications:

  • Industrial Control PCB mainboards.

  • Backplane interconnects for communications equipment.

  • Computer peripherals and internal data bus headers.

  • Aerospace/Avionics sub-assemblies.
