QTY (10) 1.8uf 250V 10% RADIAL METALLIZED FILM CAPACITORS MKT373 2222-373-45185

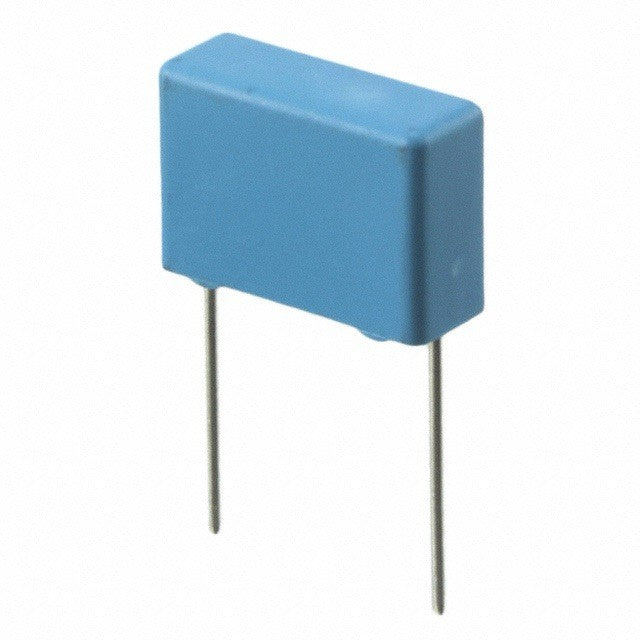

Vishay BC Components 2222-373-45185 | 1.8µF 250V MKT Metallized Polyester Film Capacitor

Product Specifications: 2222 373 45185 Capacitor

• Manufacturer: Vishay BC Components (formerly Philips)

• Series: MKT 373 (General Purpose)

• Component Type: Metallized Polyester Film Capacitor

• Capacitance: 1.8 µF

• Rated Voltage (DC): 250V DC

• Rated Voltage (AC): 160V AC

• Tolerance: ±10% (K)

• Dielectric: Metallized Polyester Film (MKT)

• Lead Spacing (Pitch): 22.5 mm

• Mounting Type: Through-Hole (Radial)

• Termination: Solderable Tinned Wire

• Case Construction: Flame retardant plastic case and epoxy resin (UL 94 V-0)

• Climatic Category: 55/105/56 (IEC 60068-1)

• Operating Temperature Range: -55°C to +105°C

Key Features & Applications

• Self-Healing Dielectric: The metallized film construction allows the capacitor to recover from internal transient breakdowns, ensuring a long operational life.

• High Pulse Strength: Designed to handle significant $dV/dt$ (rate of voltage rise), making it stable in switching environments.

• Low Inductance: Wound cell construction provides low self-inductance, suitable for high-frequency bypass and decoupling.

• Common Applications:

  • Bypassing, decoupling, and signal coupling.

  • Energy storage in low-pulse environments.

  • General-purpose filtering in industrial power supplies.

  • Consumer electronics and telecommunications equipment.
