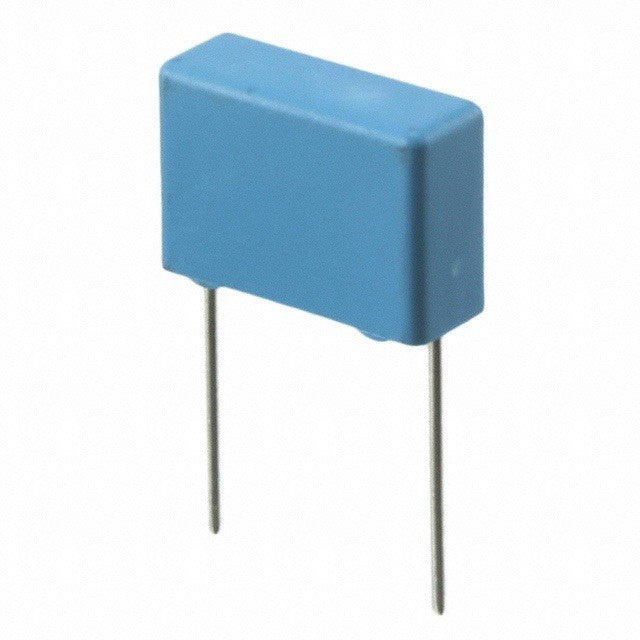

QTY (20) .033uf 275Vac 630Vdc X2 METALLIZED POLYPROPYLENE FILM 2222-338-29154 BC

Shipping calculated at checkout.

Product Specifications: 2222 338 29154 X2 Capacitor

  • Manufacturer: Vishay BC Components (formerly Philips)

  • Series: MKP 338 2 (X2 Rated)

  • Component Type: Metallized Polypropylene Film Capacitor

  • Capacitance: 0.15 µF (150 nF)

  • Rated Voltage: 275V AC (50/60 Hz)

  • Safety Class: X2 (Across-the-line interference suppression)

  • Tolerance: ±10% (K)

  • Dielectric: Polypropylene Film (MKP)

  • Lead Spacing (Pitch): 15.0 mm

  • Climatic Category: 55/105/56/B (IEC 60068-1)

  • Approvals: ENEC, UL, CSA, CQC, VDE

  • Mounting Type: Through-Hole (Radial)

  • Operating Temperature Range: -55°C to +105°C

  • Encapsulation: Flame retardant plastic case and epoxy resin (UL 94 V-0)

Key Features & Applications

  • Reliable Suppression: High stability of capacitance and low dissipation factor for effective EMI/RFI filtering.

  • X2 Safety Rating: Specifically designed for applications where a capacitor failure would not lead to electric shock, such as across-the-line connections.

  • Self-Healing Dielectric: Polypropylene construction allows the device to recover from internal transient breakdowns, extending the service life of the circuit.

  • Common Applications:

    • Switch-mode power supply (SMPS) input stages.

    • Appliance control boards and industrial electronics.

    • Line-to-line noise filtering in AC mains environments.
