Description

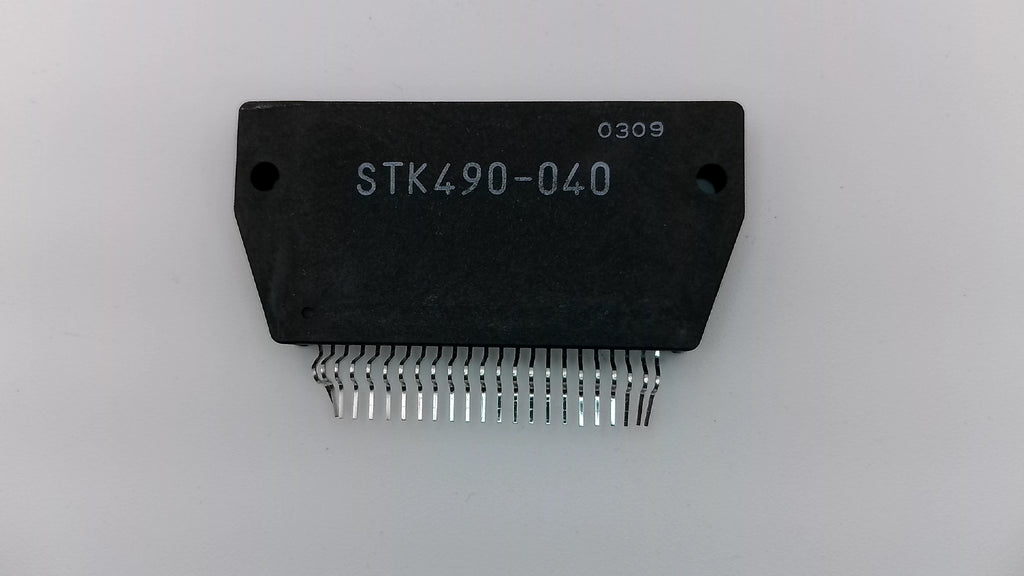

The STK490-040 is a genuine Sanyo thick-film hybrid integrated circuit designed for multi-channel audio amplification. Featuring a unique 3-channel output configuration, this module is most commonly used in high-output bookshelf stereo systems and home theater receivers to drive the main stereo speakers and a third auxiliary channel (such as a subwoofer or center speaker).
Key Features:
- 3-Channel Power Stage: Consolidates three separate amplification stages into a single module for better thermal consistency and space efficiency.
- High-Fidelity Performance: Delivers clean, powerful audio with the low total harmonic distortion (THD) Sanyo hybrid ICs are known for.
- Rugged Hybrid Construction: Built on an insulated metal substrate for superior heat dissipation and long-term reliability under heavy loads.
- OEM Replacement: The standard repair component for many popular 1990s and 2000s-era integrated audio systems.
Specifications & Compatibility:
- Channels: 3-Channel Output
- Manufacturer: Sanyo (Panasonic)
- Package: Sanyo Case (Multi-pin Hybrid)
- Commonly Used In: Aiwa, Sony, Kenwood, and JVC "Mini-System" stereos and surround sound units.
Installation Requirement: To prevent premature failure, this module must be mounted with fresh thermal compound to a clean heatsink. Ensure all power is discharged from the system's filter capacitors before soldering.
