Description
High-Performance Stereo Voltage Amplifier Driver Module

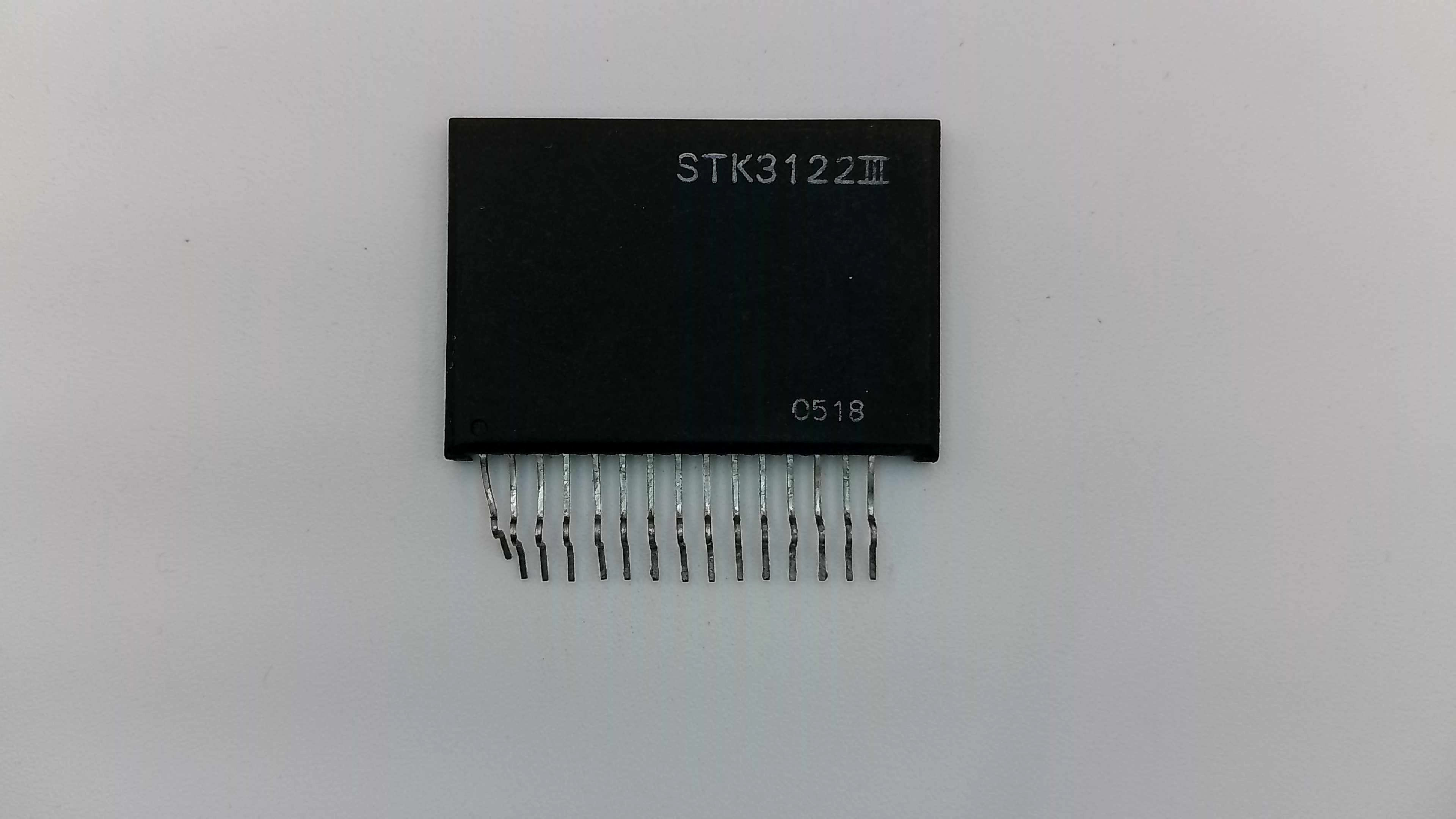

The STK3122III is a precision thick-film hybrid integrated circuit from Sanyo's elite series. Engineered specifically as a voltage amplification stage, this "Mark III" module is designed to drive high-power output stages delivering between 100W and 120W per channel with exceptional signal purity.
A staple in high-end vintage Hi-Fi receivers and professional power amplifiers, the STK3122III is prized for its ultra-low noise floor and superior thermal tracking, ensuring consistent audio performance even during extended high-volume sessions.
Key Technical Features:
- Application: Premium voltage amplification for 100W–120W stereo power stages.
- Mark III Refinement: Advanced internal circuitry achieving ultra-low Total Harmonic Distortion (typically 0.08% at full drive).
- Configuration: 2-Channel (Stereo) in a specialized 15-pin SIP package.
- Frequency Response: Optimized for high-fidelity reproduction from 20Hz to 20kHz (±0.3dB).
- Voltage Range: Designed for high-voltage dual supplies (Maximum ±63V).
Technician's Note:
The STK3122III is the high-voltage "brain" of the power amplifier. Before installation, it is critical to verify that the final output transistors and emitter resistors are functioning correctly. A short in the power stage can backfeed and damage a new driver IC instantly. Always ensure the power supply capacitors are fully discharged before replacing this module.
Installation Tip: Proper heatsink mounting is essential. Use high-quality thermal silicone grease to ensure effective heat transfer from the module backplate to the cooling assembly.
