Description

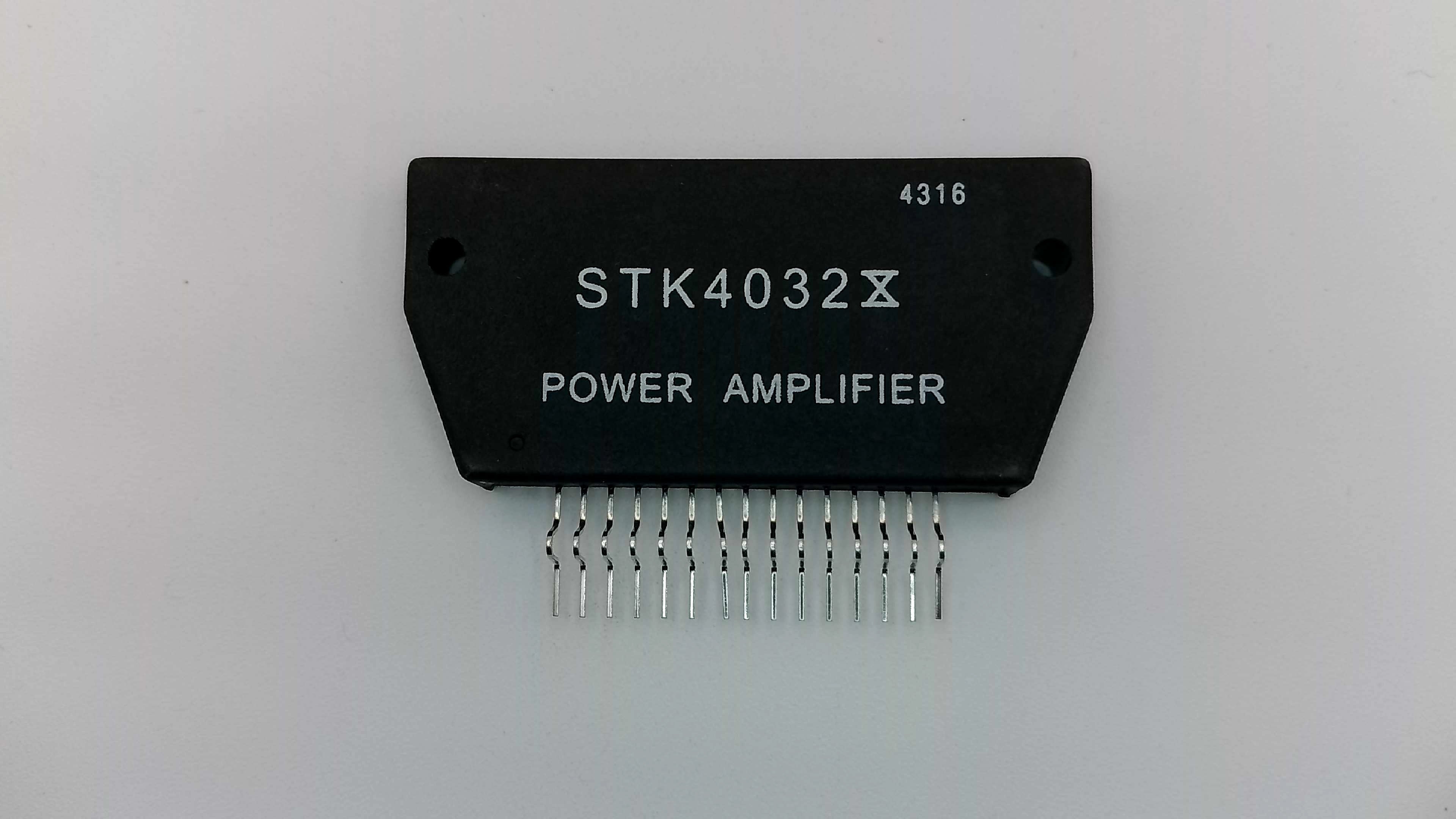

High-Fidelity 40W Mono Power Amplifier Module
The STK4132X is a premium thick-film hybrid integrated circuit from Sanyo's high-grade "X" series. Unlike standard power modules, the STK4032X is engineered for audiophile-grade performance, delivering a continuous 40 Watts of power with an incredibly low Total Harmonic Distortion (THD) of just 0.008%.
This mono module is commonly found in high-end center channel speakers, powered subwoofers, and mono-block amplifier configurations where signal purity is the top priority.
Key Technical Features:
- Continuous Power Output: 40W (at 8Ω, THD = 0.008%)
- Ultra-Low Distortion: 0.008% THD provides transparent, studio-quality audio reproduction.
- Configuration: Mono (Single Channel)
- Frequency Response: Optimized for high-bandwidth audio applications.
- Operating Voltage: Recommended supply of ±35V (Absolute Maximum ±52V).
- Package Type: Compact SIP with a heavy-duty metal backplate for superior heat transfer.
Installation & Thermal Management:
Due to its high precision, the STK4032X is sensitive to heat. It must be mounted to a substantial heatsink using high-quality thermal grease. Proper installation ensures that the module maintains its ultra-low distortion characteristics and prevents thermal runaway.
Pro Tip: When replacing this IC, verify that your power supply rails are clean and within the recommended ±35V range to fully realize the "X" series' audiophile performance.
