High-Output 80W Mono Audio Power Amplifier Module

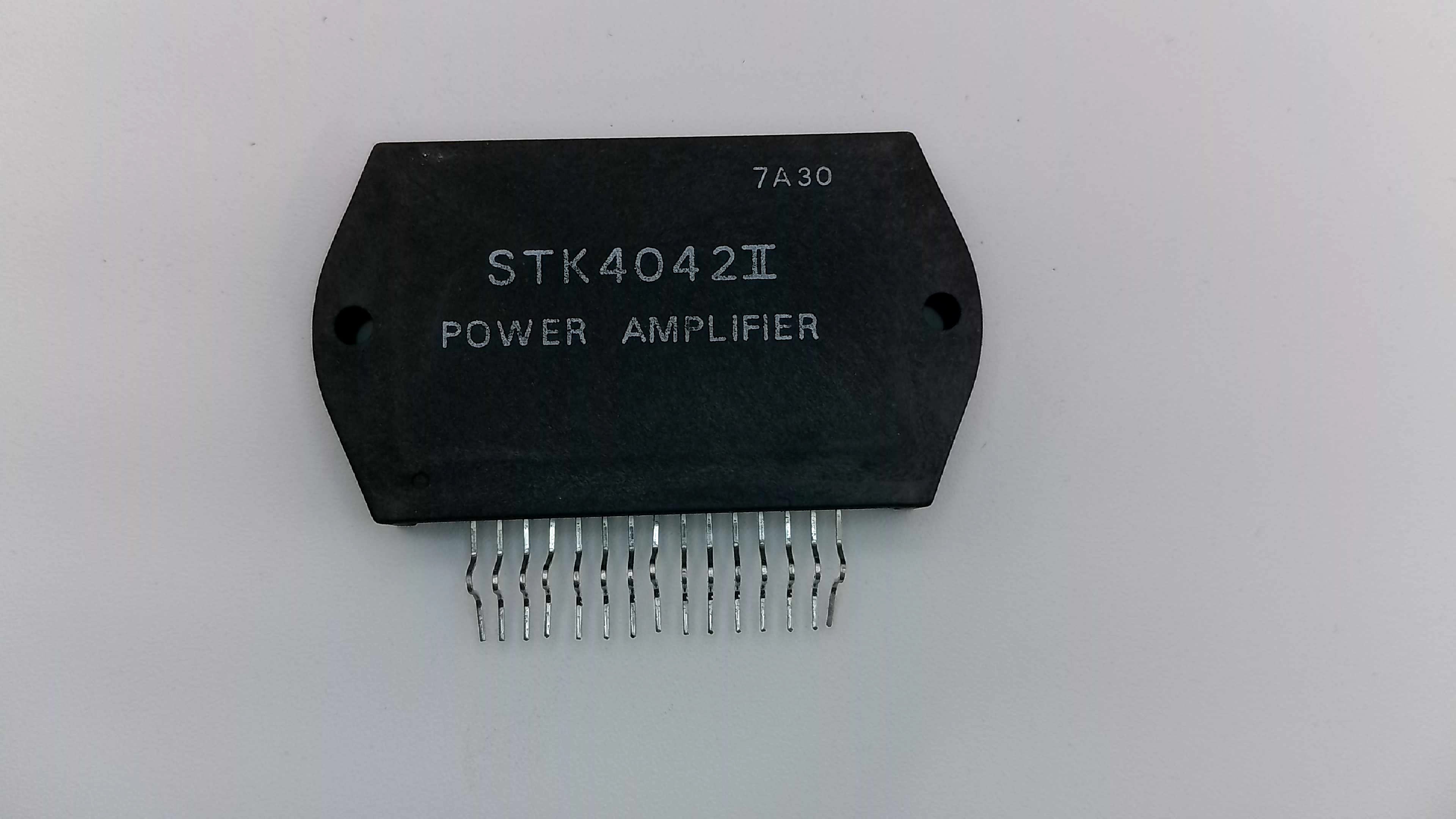

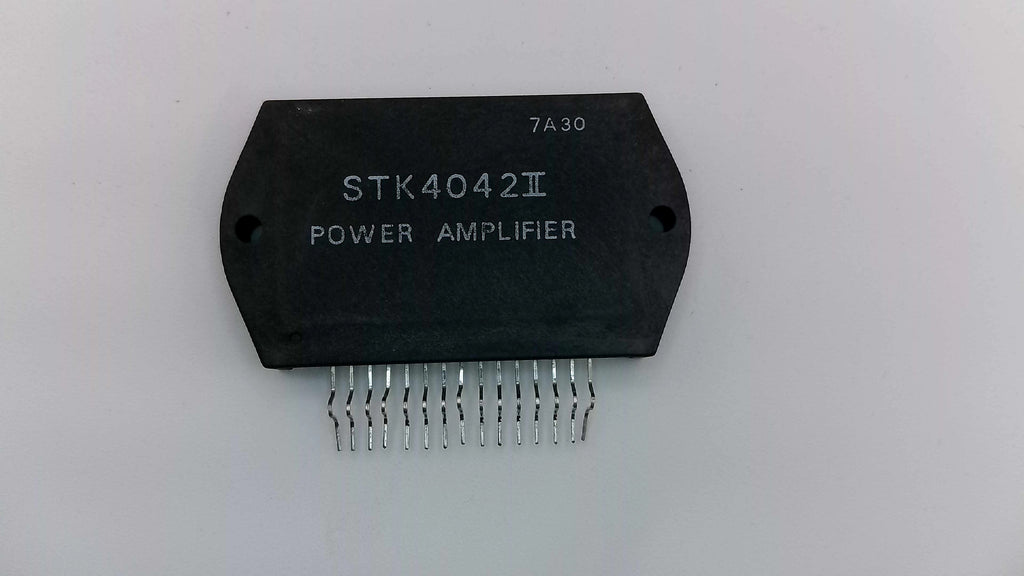

The STK4042II is a heavy-duty thick-film hybrid integrated circuit from Sanyo's trusted "Series II" line. Capable of delivering a continuous 80 Watts of output, this module is a staple replacement part for high-performance vintage receivers, dedicated subwoofer amplifiers, and professional-grade active monitoring systems.
The STK4042II is specifically engineered for split-power supply systems and includes an internal constant-current circuit to significantly reduce supply switch-on and switch-off shock noise ("thump"), ensuring the safety of your high-excursion drivers.
Key Technical Features:
- Continuous Power Output: 80W Minimum (at 8Ω, 20Hz to 20kHz, THD = 0.4%).
- Total Harmonic Distortion: 0.4% at full power; 0.3% typical at 1.0W (1kHz).
- Configuration: Mono (Single Channel) in a standard 15-pin hybrid package.
- Frequency Response: Full-range audio capability from 20Hz to 50kHz.
- Operating Voltage: Recommended supply of ±45V (Absolute Maximum ±65V).
- Pin Compatibility: Member of a versatile pin-compatible series (20W to 200W), allowing for modular repair and design.
Installation & Thermal Management:
Due to its 80W output, the STK4042II generates significant thermal energy during operation. It must be securely mounted to a high-mass heatsink using premium thermal silicone grease. Running this module without a heatsink—even for a few seconds of testing—will cause immediate and permanent internal substrate failure.
Technician's Note: Before installation, check your power supply rails for symmetry and ensure filter capacitors are fully discharged. We highly recommend verifying the health of the output emitter resistors, as a previous failure in the speaker lines often damages these components along with the original IC.
