Description

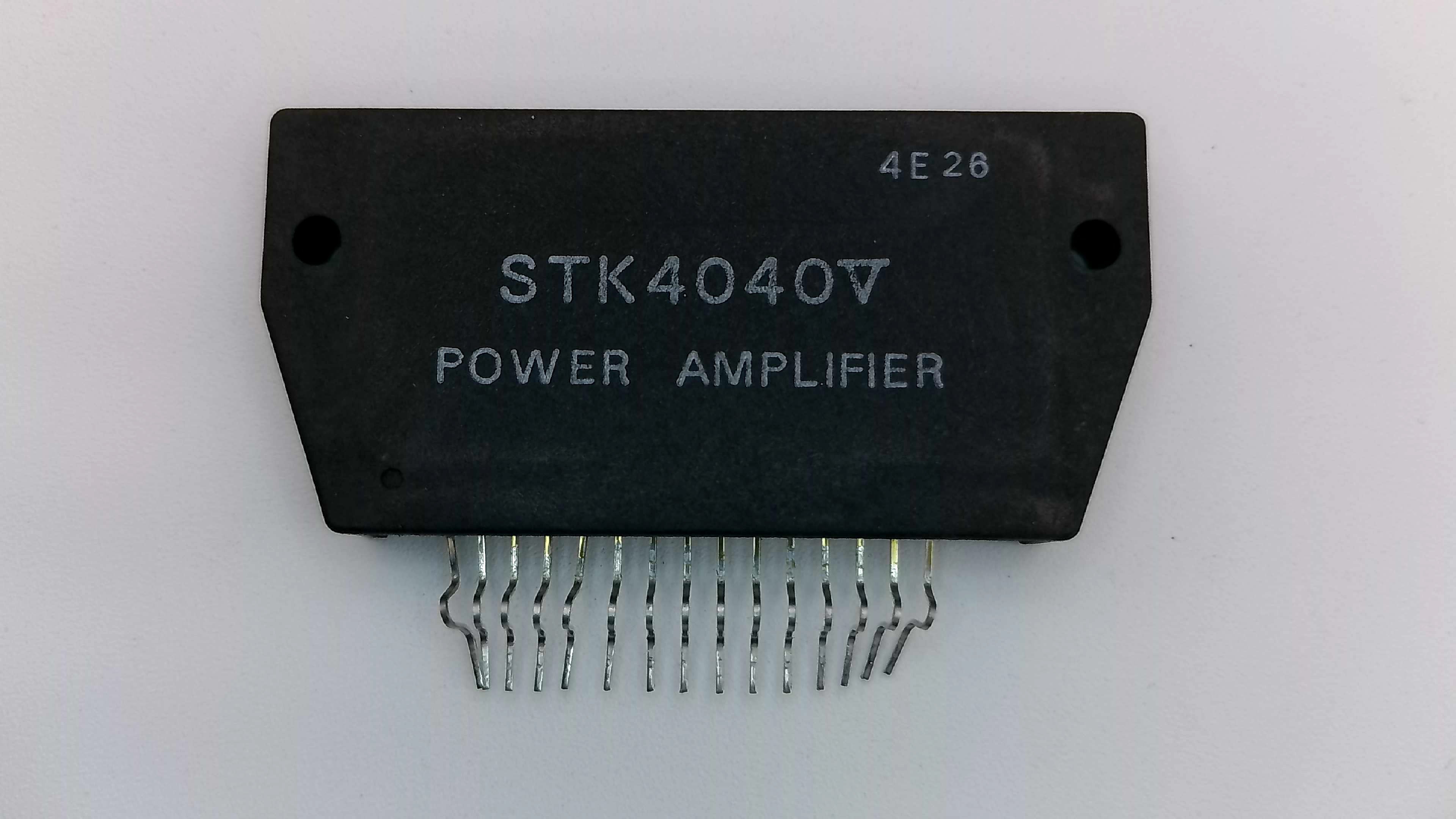

High-Fidelity 70W Mono Power Amplifier Module
The STK4040V is a high-performance thick-film hybrid integrated circuit from Sanyo's prestigious "V" series. Delivering a continuous 70 Watts of output, this module is specifically engineered for high-fidelity audio applications where clean, uncolored power is a necessity. The "V" series revision features an internal current mirror circuit that reduces Total Harmonic Distortion (THD) to a mere 0.08%.
This mono module is a staple in the restoration of high-end vintage stereo receivers (typically used in pairs), powered studio monitors, and professional-grade guitar or keyboard amplifiers requiring significant headroom.
Key Technical Features:
- Continuous Power Output: 70W min (at 8Ω, 20Hz to 20kHz, THD = 0.08%).
- Distortion Performance: Low 0.08% THD for professional-level sonic clarity.
- Frequency Response: Full-range reproduction from 20Hz to 50kHz.
- Operating Voltage: Recommended supply of ±42V to ±43.5V (Absolute Maximum ±62V).
- Pin Compatibility: Member of the STK4024V series (20W to 100W), allowing for easy power scaling.
- Protection Ready: Designed to support external circuits for pop-noise muting, thermal shutdown, and load-short protection.
Installation & Thermal Management:
Due to its 70W output, the STK4040V generates substantial heat. It must be securely mounted to a flat, clean heatsink using high-quality thermal silicone grease. Operating the module without a heatsink—even for a brief test—will result in immediate and permanent internal substrate failure.
Technician's Note: Before installation, check your power supply rails for symmetry. For optimal "V-series" performance, ensure your supply remains near the recommended ±42V range. We strongly advise checking for shorted output transistors in the existing circuit before powering up the new module.
