Description

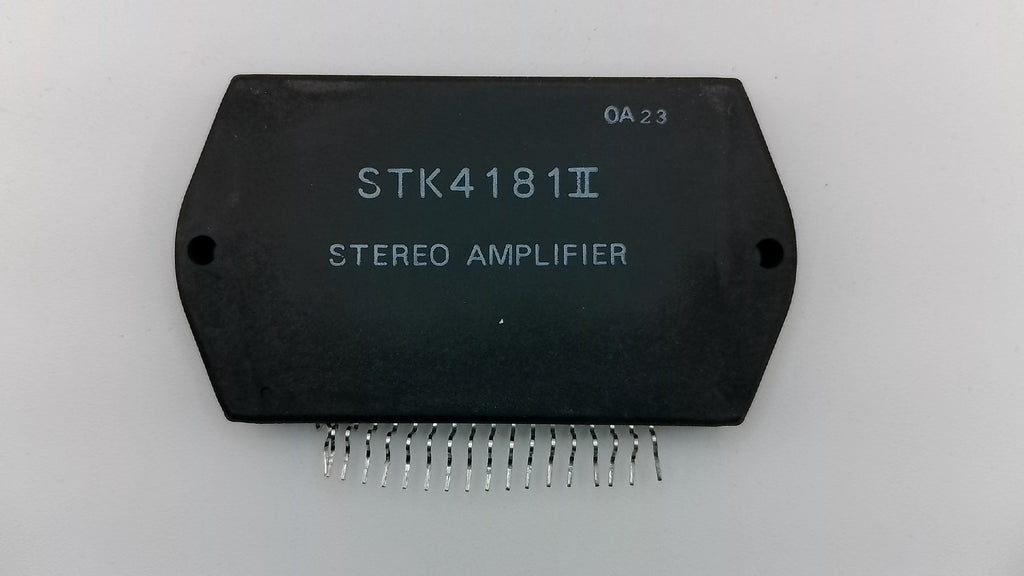

Powerful 45W+45W Stereo Audio Power Amplifier Module
The STK4181II is a high-output thick-film hybrid integrated circuit from Sanyo's renowned 4101II family. Engineered for split-rail power supplies, this module provides a consistent 45 Watts per channel of clean, analog power. It is the go-to replacement part for restoring audio in high-end bookshelf stereos, mid-range AV receivers, and vintage Hi-Fi components from the late 80s through the early 2000s.
The "Series II" design features a built-in muting circuit to protect your speakers from power-on "thumps" and an internal constant current circuit that ensures low harmonic distortion (0.4% THD). It is prized by technicians for its balanced performance and classic musicality.
Key Technical Features:
- Continuous Power Output: 45W + 45W (at 8Ω, 20Hz to 20kHz, THD = 0.4%).
- Configuration: 2-Channel Stereo (18-Pin SIP Package).
- Frequency Response: Full-range high-fidelity from 20Hz to 50kHz.
- Operating Voltage: Recommended supply of ±34V (Absolute Maximum ±50V).
- Thermal Protection: Guaranteed operation up to 125°C substrate temperature.
Technician's Installation Guide:
Due to its 45W+45W output rating, the STK4181II generates significant heat. It must be securely mounted to a substantial heatsink using a fresh layer of high-quality thermal silicone grease. Operating the module without a heatsink—even for a five-second test—will result in immediate and permanent internal failure.
Installation Tip: Before soldering the new IC, verify that the large power supply filter capacitors are fully discharged. Additionally, check the output emitter resistors (usually 0.22Ω to 0.47Ω) as they often fail when the original chip shorts out.
