Description
High-Fidelity 2-Channel Stereo Audio Power Amplifier Module

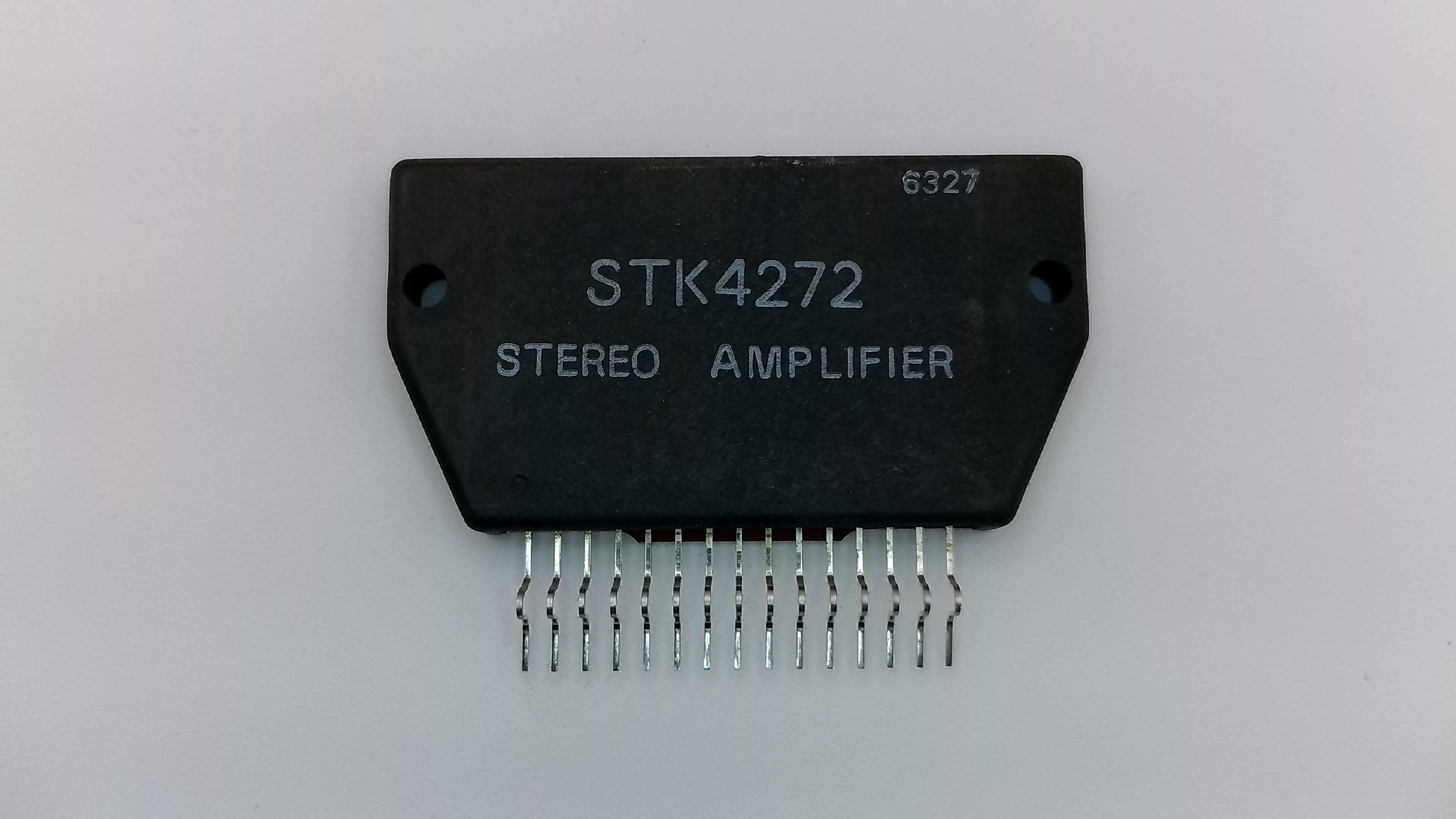

The STK4272 is a robust thick-film hybrid integrated circuit manufactured by Sanyo. Designed for use in high-quality stereo receivers and integrated amplifiers, this 15-pin module provides a stable, two-channel output optimized for 8Ω loads. It is a legendary component known for its reliable "Series II" performance and classic analog sound signature.
This module features an internal constant-current circuit to ensure high stability and minimize power-on "thump," making it the ideal replacement part for restoring mid-range vintage Hi-Fi systems and bookshelf audio units to their original factory specifications.
Key Technical Features:
- Configuration: 2-Channel Stereo (15-Pin HYB-15 Package).
- Distortion Performance: Standard 0.4% THD (Total Harmonic Distortion) for a warm, musical output.
- Thermal Advantage: Built on Sanyo's Insulated Metal Substrate Technology (IMST) for superior heat dissipation.
- Frequency Response: Full-range high-fidelity capability (20Hz to 50kHz).
- Operating Stability: Rated for high-temperature durability with a max substrate temperature of 125°C.
- Voltage Range: Designed for split-power supply configurations.
Installation & Technician's Notes:
The STK4272 generates significant heat during audio playback and must be securely mounted to a clean, flat heatsink using high-quality thermal silicone grease. Operating this module without a heatsink—even for a few seconds of functional testing—will result in immediate and permanent internal substrate failure.
Pro Tip: Before installation, check the output emitter resistors and verify that your power supply rails are symmetrical. Most STK failures are caused by external speaker shorts; ensure the speaker lines are clear before powering up the new module.
