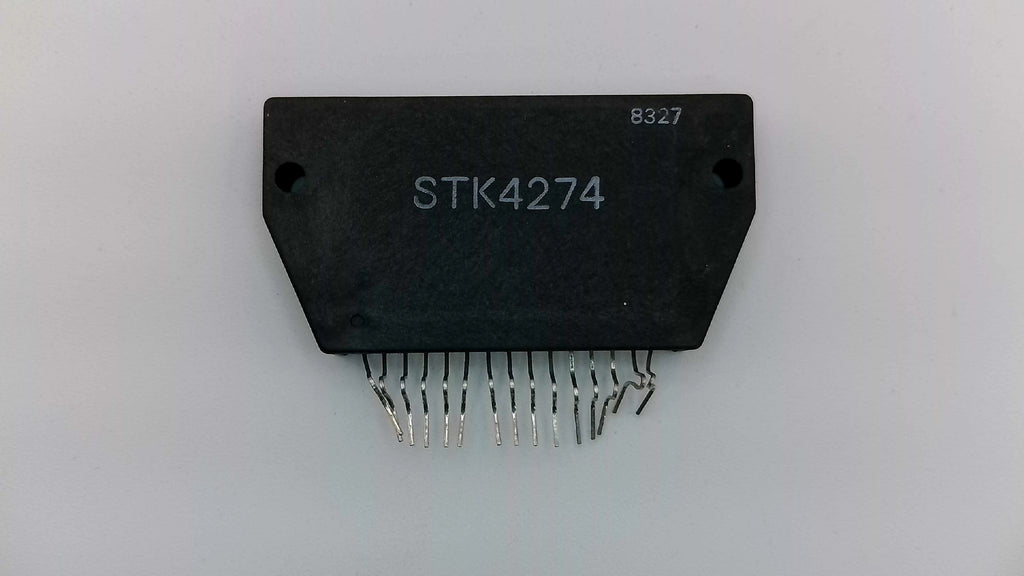

Sanyo STK4274 2-Channel Current Amplifier Module
The STK4274 is a precision thick-film hybrid integrated circuit manufactured by Sanyo. Specifically designed as a 2-channel current amplifier, this 15-pin module is a critical component for convergence correction in projection televisions, CRT monitors, and specialized video equipment.
Engineered for high reliability and thermal stability, the STK4174 handles precision current driving tasks that require robust performance under constant load. It is the definitive replacement part for restoring video alignment and geometric accuracy in vintage high-end display hardware.
Key Technical Features:
- Application: Dual-channel current amplification for convergence correction.
- Package Type: 15-Pin SIP (Single In-line Package).
- Maximum Supply Voltage: ±38V.
- Maximum Collector Current: ±2.0A.
- Thermal Performance: Thermal resistance of 3.0°C/W with a junction temperature rating of 150°C.
- Operating Case Temperature: Rated up to 105°C for high-heat environments.
Installation & Technician's Notes:
Convergence modules like the STK4274 operate in high-temperature environments within projection units. It must be securely mounted to its original heatsink with a fresh application of high-quality thermal silicone grease. Failure to ensure proper thermal coupling will result in immediate overheating and internal failure.
Pro Tip: Before installing the new STK4274, check the surrounding resistors and capacitors in the convergence circuit. Faulty passive components often lead to the original IC's failure; replacing the IC without addressing the root cause may lead to a repeat failure.
