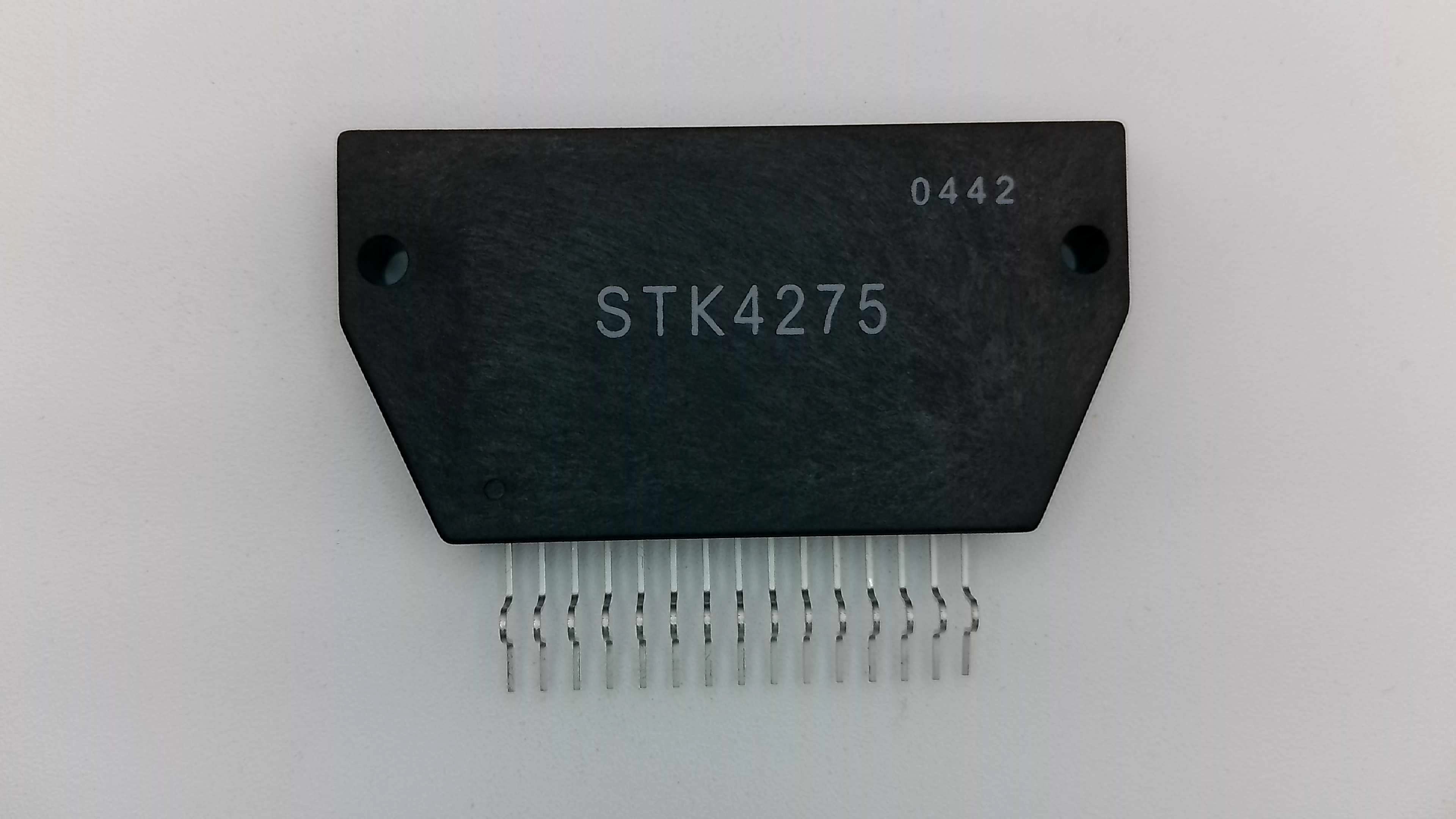

Sanyo STK4275 Focus Output Power Amplifier Module
The STK4275 is a high-precision thick-film hybrid integrated circuit manufactured by Sanyo. Specifically engineered as a Focus Output Power Amplifier, this 15-pin module is an essential component for the focus and deflection control systems in projection televisions and professional-grade CRT monitors.
Built using Sanyo's high-reliability fabrication process, the STK4275 handles the demanding current requirements of electromagnetic focus coils. It is the definitive replacement part for restoring sharpness and geometric accuracy to vintage high-end display hardware that has suffered from focus drift or blurred imagery.
Key Technical Features:
- Application: Dedicated Focus Output Power Amplification.
- Package Type: 15-Pin SIP (Single In-line Package / ZIP-15P).
- High Current Drive: Designed to maintain stable output for electromagnetic coil management.
- Thermal Management: Integrated onto an insulated metal substrate for efficient heat dissipation.
- Precision Control: Optimized for linear performance in video deflection environments.
Installation & Technician's Notes:
Focus output modules like the STK4275 operate under significant thermal stress within video units. The module must be securely bolted to its original heatsink with a fresh, even application of high-quality thermal silicone grease. Operating this module without proper thermal coupling—even for a few seconds during a test—will lead to localized "hot-spotting" and permanent internal failure.
Pro Tip: Before replacing the STK4275, inspect the flyback transformer and focus block for leaks or arcing, as these external faults often cause the focus amplifier to fail. Ensure the focus voltage path is clear and that associated high-wattage resistors are within their rated tolerance.
