Description
High-Fidelity 15W+15W Stereo Audio Power Amplifier Module

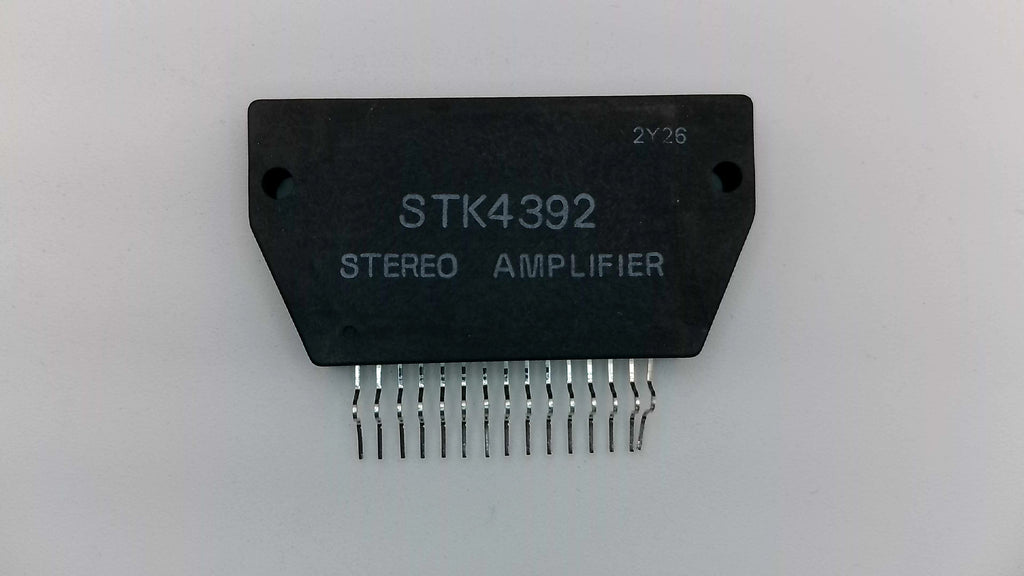

The STK4392 is a legendary thick-film hybrid integrated circuit from Sanyo's high-performance audio series. Delivering a continuous 15 Watts per channel, this 15-pin module is a critical replacement part for iconic vintage audio gear, most notably high-end 1980s "Ghetto Blasters" and mid-sized integrated stereo systems. It is prized for its signature "warm" analog output and clinical reliability.
Designed using Sanyo's Insulated Metal Substrate Technology (IMST), the STK4392 provides superior thermal stability and a massive frequency range. With a Total Harmonic Distortion (THD) of just 1.0% at full power (and only 0.3% at typical listening levels), it is the gold standard for restoring classic consumer electronics to their original factory clarity.
Key Technical Features:
- Continuous Power Output: 15W + 15W (at 8Ω, f = 1kHz, THD = 1.0%).
- Configuration: 2-Channel Stereo in a 15-Pin SIP (Single In-line Package).
- High-Frequency Performance: Exceptional bandwidth up to 100kHz (+0, -3dB).
- Low Distortion: Typically 0.3% THD at 0.1W for detailed, low-volume fidelity.
- Thermal Stability: Guaranteed substrate operation up to 125°C.
- Recommended Supply Voltage: 39V DC (Absolute Maximum 56V).
Installation & Safety Guide:
As a mid-power module, the STK4392 generates significant heat during playback. It must be securely bolted to a clean, flat heatsink or the metal chassis using high-quality thermal silicone grease. Operating this module without a proper heatsink—even for a brief functional test—will cause immediate and permanent internal substrate failure.
Technician's Note: Before installing, verify your power supply voltage (ideally near 39V) and discharge all filter capacitors. We highly recommend checking the output coupling capacitors (typically 1000μF), as aged electrolytic caps are the primary cause of module failure in vintage boomboxes.
