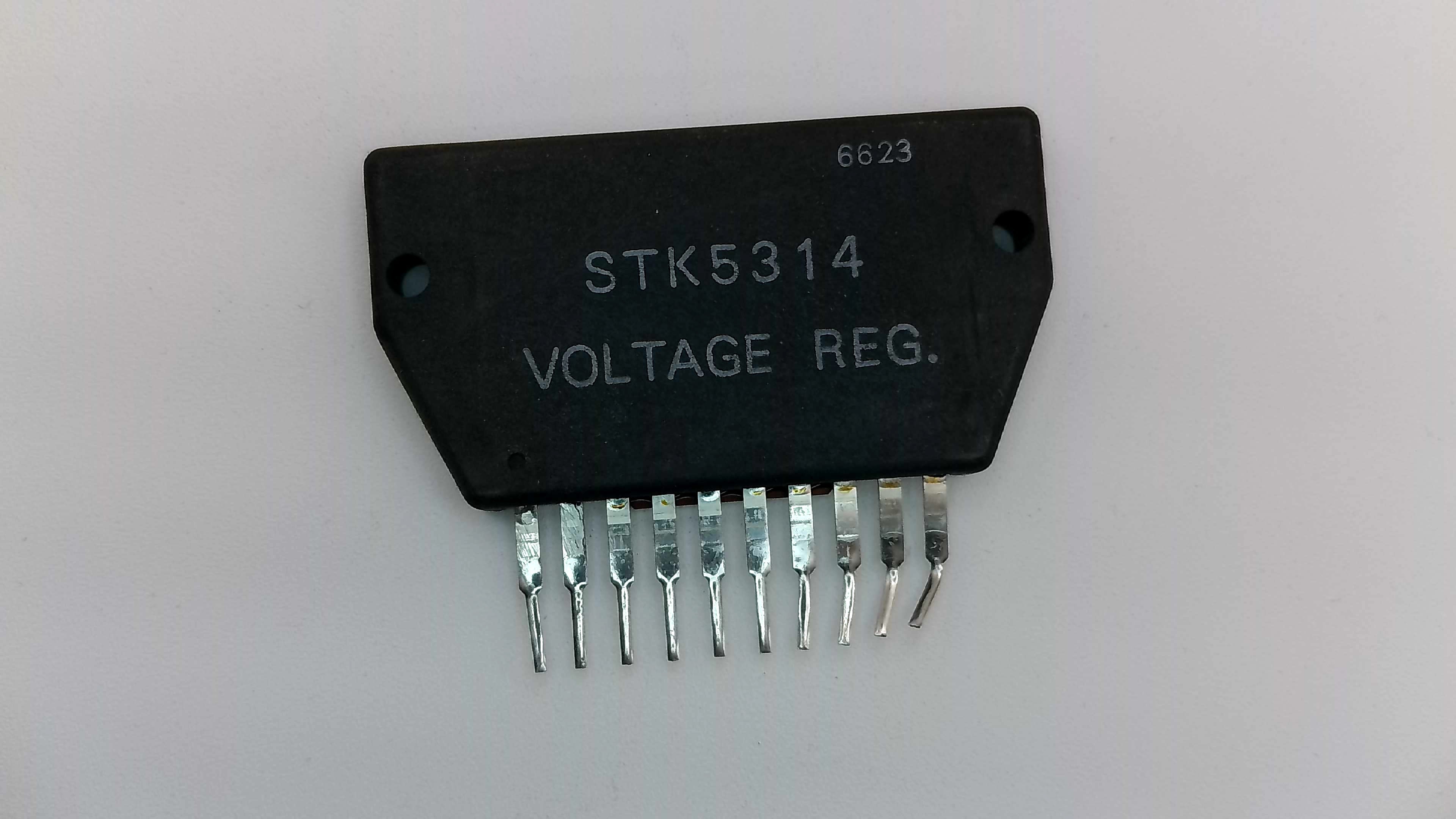

Sanyo STK5314 Dual-Output 12V High-Current Voltage Regulator
The STK5314 is a precision thick-film hybrid integrated circuit designed for complex power management. Unlike standard regulators, this 10-pin module provides two independent 12V outputs within a single package. It is engineered on Sanyo's proprietary IMST substrate, offering exceptional thermal stability and reliability for high-current applications.
Specifically designed for video equipment, projection televisions, and professional monitors, the STK5314 includes a specialized cutoff function that allows for external signal control of the output voltage. This makes it a vital component for the power-sequencing circuits in vintage high-end displays.
Key Technical Features:
- Dual Outputs: Output 1 (12V at 1.6A) and Output 2 (12V at 4.0A).
- Cutoff Function: Integrated circuitry to cut off output voltage based on external logic signals.
- High Current Capacity: Designed to handle up to 4A on Output 2 for demanding logic or drive circuits.
- Package Type: 10-Pin SIP (Single In-line Package).
- Operating Case Temperature: Rated for stable operation up to 105°C.
- Thermal Efficiency: Built-in aluminum substrate ensures superior heat dissipation compared to standard PCBs.
Installation & Safety Guide:
Because the STK5314 regulates high current (up to 4A), it generates significant heat. It must be securely mounted to a clean, flat heatsink using high-quality thermal silicone grease. Operating the module without proper heatsinking—even for a brief diagnostic check—will result in immediate thermal runaway and permanent internal failure.
Technician's Note: Before installing the new STK5314, verify the input DC voltage (typically around 18-20V). If the original regulator failed, inspect the filter capacitors and the load circuit for shorts, as a shorted secondary rail is the most common cause of regulator failure in CRT and projection systems.
