Description

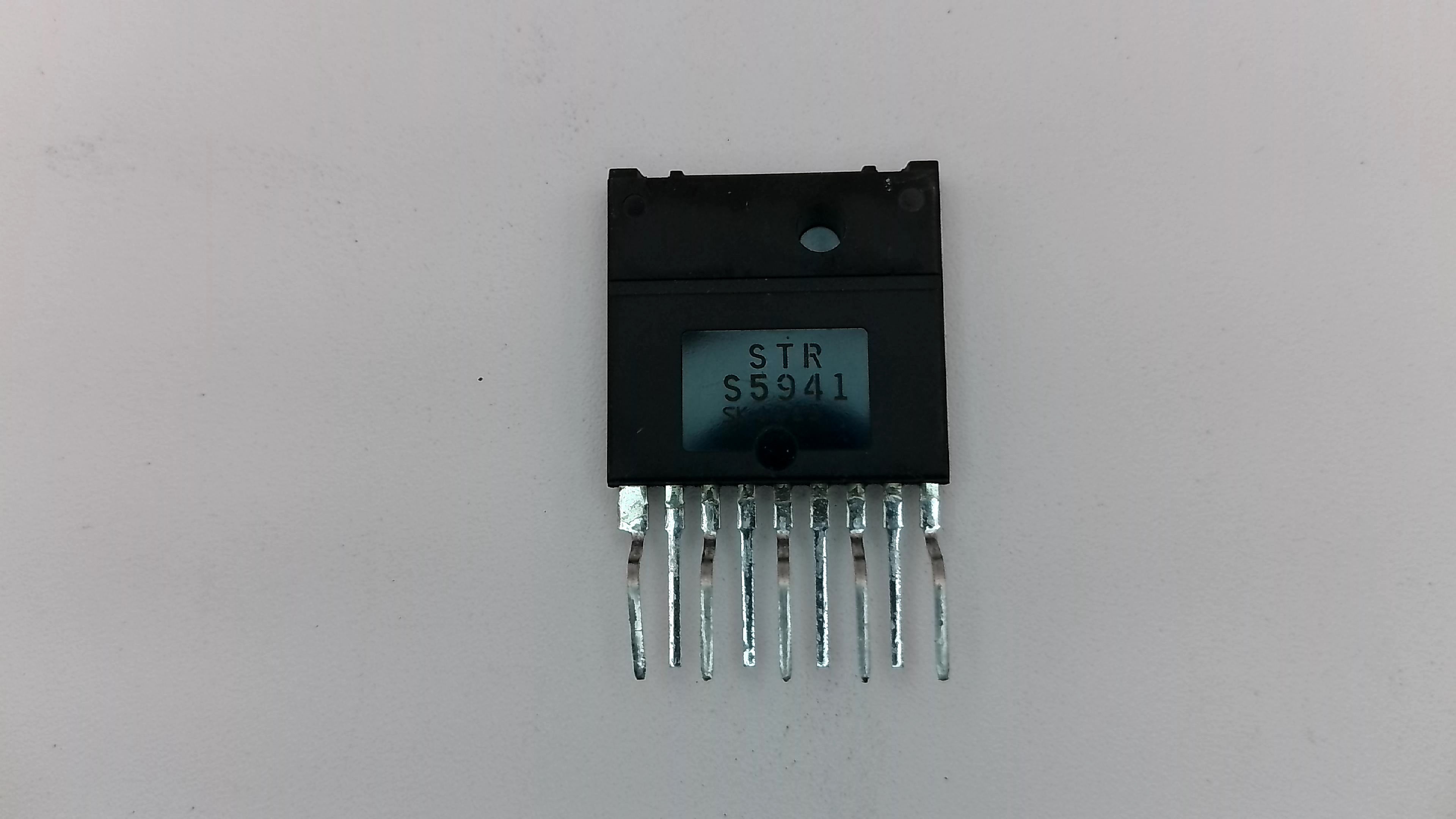

The STR-S5941 is an original Sanken hybrid integrated circuit engineered specifically for highly integrated, off-line switched-mode power supplies (SMPS). This high-efficiency voltage management IC integrates a PWM (Pulse Width Modulation) controller, a primary startup drive circuit, and a rugged power switching element inside a single specialized package to reduce external component count and optimize power density.
Key Features:
- Manufacturer: Sanken Electric Co., Ltd. (Distributed originally via Allegro MicroSystems)
- Package Type: ZIP-9 / ISQL-9 (9-pin Zig-Zag In-line Power Package) with an integrated cooling fin.
- Topology: Switching Regulator with Pulse Width Modulation (PWM) Control.
- Built-In Protections: Features robust safety safeguards including over-voltage protection (OVP), cycle-by-cycle over-current protection (OCP), over-temperature shutdown (OTP), and an internal soft-start function to eliminate startup inrush stress.
- Condition: Brand New / New Old Stock (NOS)
Widely utilized by electronics repair professionals and technicians for servicing legacy display systems, specialized power adapters, and retro consumer video power chassis requiring a drop-in Sanken hybrid semiconductor replacement.
