Description

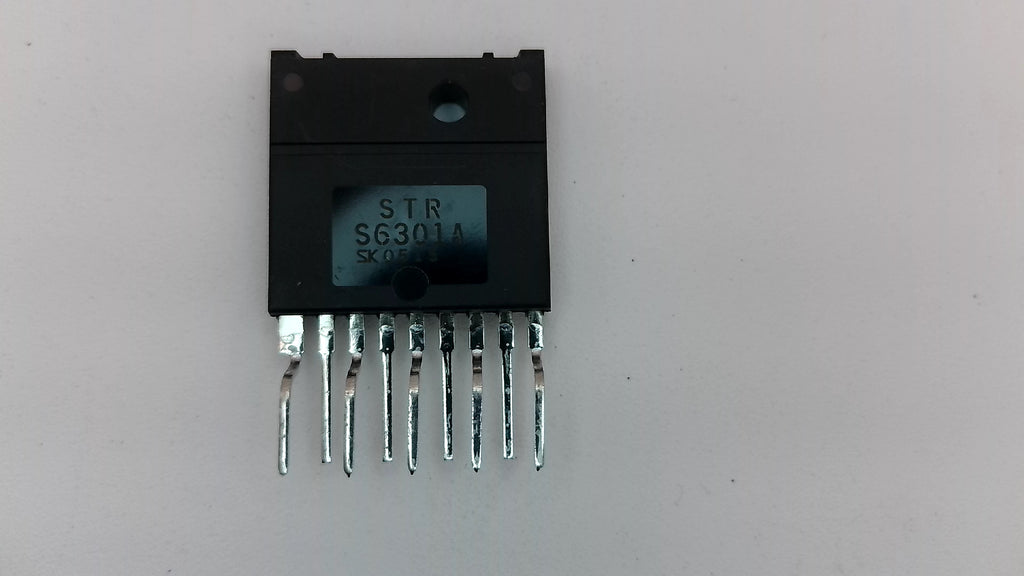

The STR-S6301A is an original Sanken hybrid integrated circuit designed specifically for line-operated switching regulators and power supply applications. It functions primarily to deliver a stable, fixed output voltage (typically 130V) for demanding electronic environments, integrating primary control circuits and a heavy-duty power switching element into a single robust package.
Key Features:
- Manufacturer: Sanken Electric Co., Ltd.
- Package Type: ZIP-9 / SIP-9 (9-pin Single/Zig-Zag In-line Power Package) with an attached metal cooling fin for heat dissipation.
- Application: Fixed-voltage off-line switching regulators and line-operated television power supplies.
- Primary Output Specification: Designed for regulated 130V fixed power rails.
- Condition: Brand New / New Old Stock (NOS)
An essential component used widely by repair technicians for servicing vintage CRT televisions (such as older Hitachi chassis), legacy arcade monitors, and specialized industrial switch-mode power supplies (SMPS).
