Description

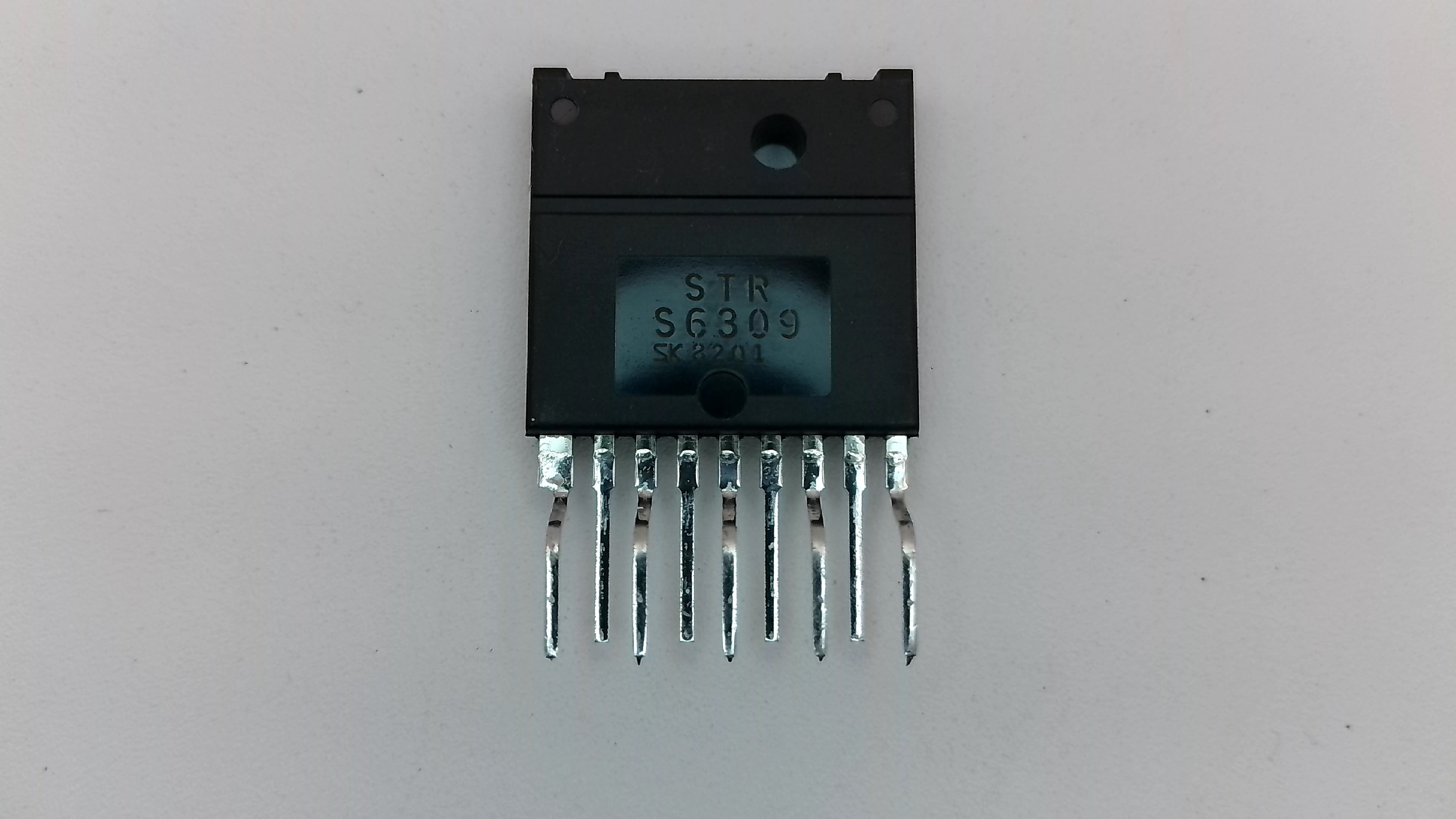

The STR-S6309 is an original Sanken hybrid integrated circuit designed for power management and fixed-voltage regulation applications. This heavy-duty voltage regulator combines primary control circuitry with a high-power switching element (incorporating a internal 10A, 70W NPN power transistor) inside a robust single package designed to handle demanding thermal environments.
Key Features:
- Manufacturer: Sanken Electric Co., Ltd.
- Package Type: SIP-9 / ZIP-9 (9-pin Single/Zig-Zag In-line Power Package) featuring an integrated metal cooling fin.
- Internal Component: Heavy-duty power switching element (NPN Transistor rated at 70W / 10A).
- Application: Fixed-voltage off-line switching regulators, AC-DC power conversion, and vintage TV chassis repair.
- Condition: Brand New / New Old Stock (NOS)
Commonly sought after by electronics repair technicians and enthusiasts for maintaining legacy CRT monitors, TV power boards, and older industrial equipment relying on classic Sanken hybrid modules.
