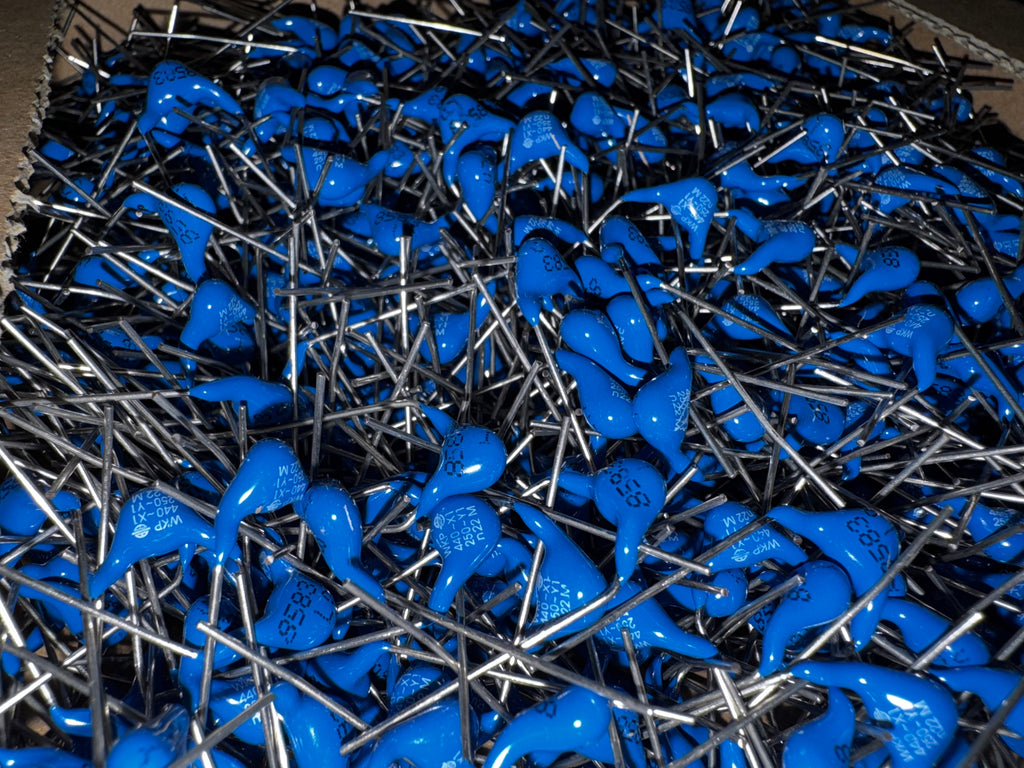

20 QTY Vishay / Draloric WKP221MCPEJ0K 220pF 250VAC 20% Ceramic Capacitor
Product Specifications: WKP221MCPEJ0K Safety Capacitor
- Manufacturer: Vishay / Roederstein (Draloric)
- Series: WKP Series (Class X1/Y1)
- Component Type: Ceramic Disc Safety Capacitor
- Capacitance: 220 pF
- Safety Class: X1 (Across-the-line) / Y1 (Line-to-ground)
- Voltage Rating (AC):
- Class X1: 760V AC, 50/60 Hz
- Class Y1: 500V AC, 50/60 Hz
- Tolerance: ±20% (M)
- Dielectric: Y5T (Class 2)
- Termination Style: Radial Through-Hole (THT)
- Lead Spacing (Pitch): 12.5 mm
- Dimensions: 8.0 mm Diameter x 6.0 mm Thickness (Max)
- Operating Temperature Range: -40°C to +125°C
- Insulation Resistance: ≥ 10,000
- Dielectric Strength: 4000V AC, 50 Hz, 2s (Lead-to-Lead)
- Coating: Blue flame-retardant epoxy resin (UL 94 V-0)
- Compliance: RoHS Compliant (Standard for modern inventory)
Key Features & Applications
- Dual Safety Rating: Meets the stringent X1 (up to 4kV impulse) and Y1 (up to 8kV impulse) requirements, making it suitable for direct connection to the AC mains.
- High Reliability: Designed for continuous operation in interference suppression and "line bypass" applications where safety is critical.
- Self-Extinguishing: The specialized epoxy coating ensures the component does not become a fire hazard in the event of a failure or surge.
- Common Applications:
- EMI/RFI filtering at the power entry stage.
- Across-the-line suppression (Class X).
- Line-to-ground (chassis) bypass (Class Y).
- Industrial power supplies and high-voltage lighting ballasts.
